HCW Stainless Steel Full Height Turnstile with Programmable Control Power Off Unlocking and Durable Construction
| Lugar de origen | Shénzhen, China |
|---|---|
| Nombre de la marca | Hongchuangwei |
| Certificación | CE |
| Número de modelo | CW804 |
| Cantidad de orden mínima | 1 |
| Precio | Negociable |
| Detalles de empaquetado | cajas de madera |
| Tiempo de entrega | 7-15 días laborables |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 100 piezas por día |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Solicitud | Exteriores e interiores | Fuente de alimentación | AC 220V/110V 10% 50/60MHz |
|---|---|---|---|
| Humillidad relativa | <95%, sin densación | Peso | 270 kg |
| Vida útil | ≥6 millones de veces | Dirección del tráfico | tráfico de ida o bidireccional |
| Longitud de la valla | 600 mm | ||
| Resaltar | Programmable Control Full Height Turnstile,Power Off Unlocking Security Gate,Durable Turnstile Gate |
||
Descripción de producto

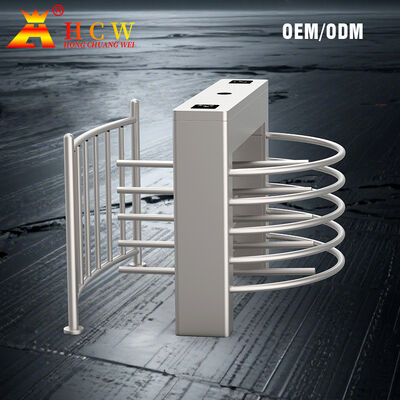

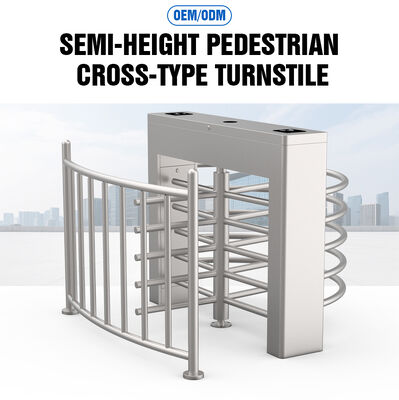

HCW Full Height Turnstile Stainless Steel Security Gate
Programmable One Way or Two Way Control with Power Off Unlocking
The HCW Full Height Turnstile is a durable, high-security stainless steel gate featuring programmable access control and fail-safe power-off unlocking. Designed for maximum security and reliability in demanding environments.
Key Features

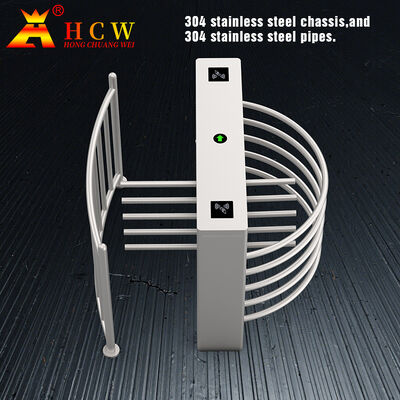

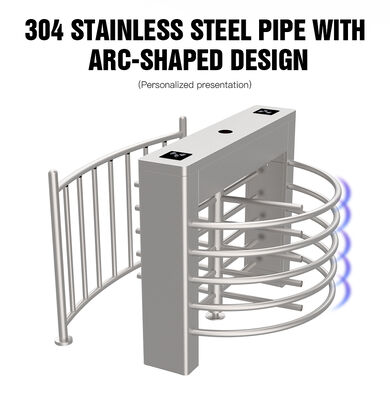

- Constructed with SUS304 stainless steel for superior durability and corrosion resistance
- Luxurious appearance with sturdy, long-lasting construction
- Customizable installation interface compatible with magnetic cards, barcodes, and ID card readers
- Smooth operation with soft buffering and low noise operation
- White heavy zinc acid electroplating for rust-proof protection
- Programmable control with multiple working modes (one-way or two-way)
- Power-off unlocking feature for emergency access
- Standard external electrical interface for easy system integration
- Sensitive impact detection for enhanced safety

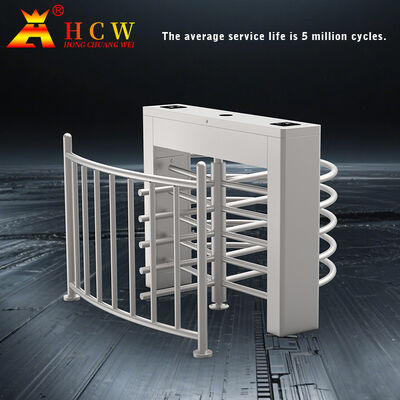

- Designed for 10 million opening/closing cycles
- Automatic self-locking after passage
Applications

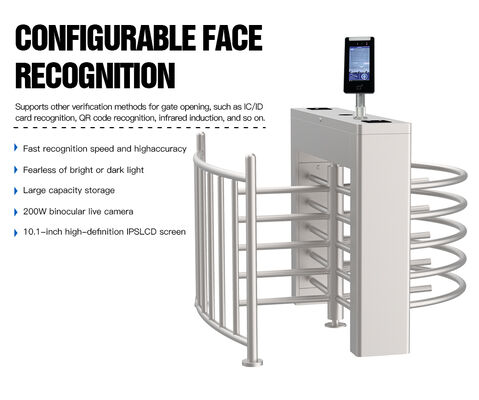

Ideal for railway stations, banks, high-end clubs, offices, gyms, swimming pools, and other secure areas. Supports RFID, fingerprint, and facial recognition systems. Can be integrated with infrared detectors and temperature controllers for various environments.
Technical Specifications
| Model | CW804 |
|---|---|
| Power Supply | AC220+10% 50HZ |
| Power Consumption | Static <50W, Dynamic <100W |
| Rotation Direction | One-way or two-way |
| Traffic Direction | One-way or two-way |
| Communication Interface | 232, RS485 |
| Components | Standard case, 90° revolving door, control panel, movement, motor |

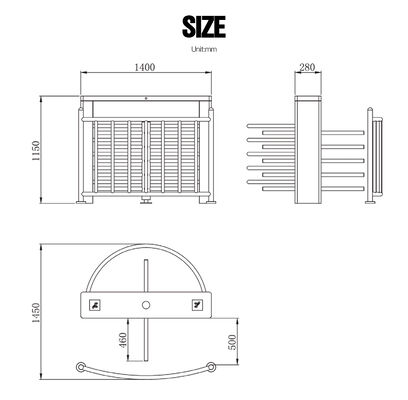

| Dimensions | 1400×1450×1150mm (Chassis: 1400×280×1150mm) |

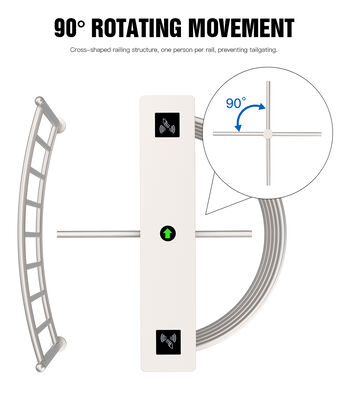

| Barrier Length | 600mm (90° barrier) |
| Swing | ≤600mm |
| Opening Time | Not adjustable |
| Capacity | 20 persons/minute |
| Operating Temperature | -25℃ to +70℃ (humidity ≤95%) |
| Auto Reset | Adjustable time limit for automatic locking |
Product Images
