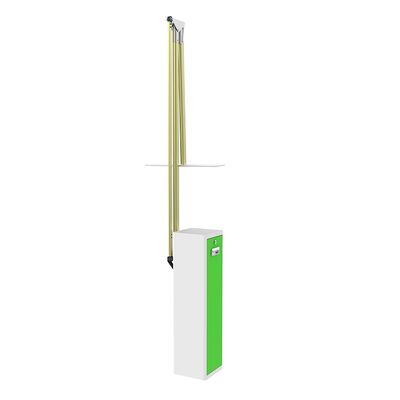

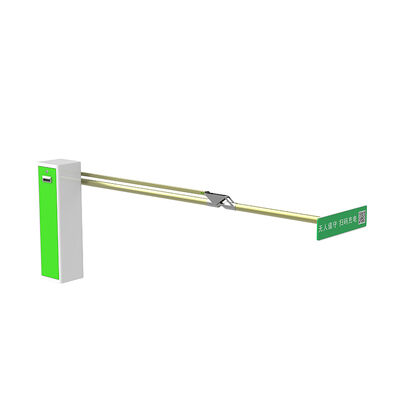

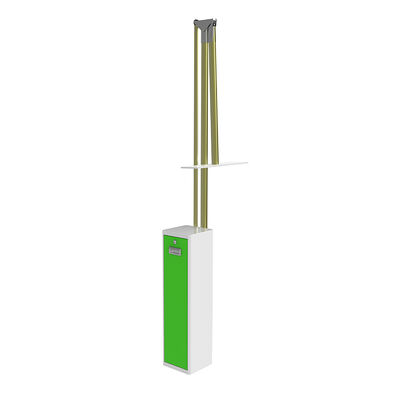

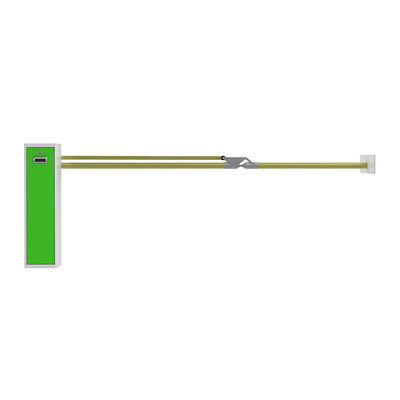

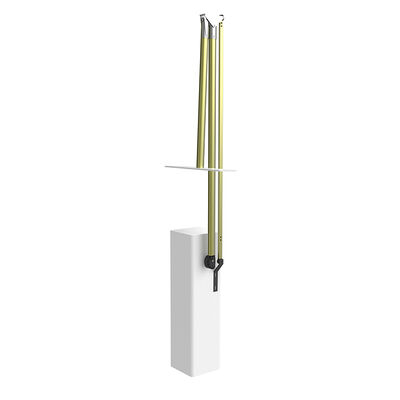

HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed and DC Brushless Motor
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | HCW |
| Certificación | CE |
| Número de modelo | S300 |
| Cantidad de orden mínima | 2 piezas |
| Precio | Negociable |
| Detalles de empaquetado | caja de madera |
| Tiempo de entrega | 5-8 días laborables |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 100 piezas por día |
Éntreme en contacto con gratis las muestras y los vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Brand name | HCW | Modelo de producto | S300 |
|---|---|---|---|
| Material del chasis | Placa laminada en frío | Longitud del brazo | 1-6 metros |
| Material del brazo | Aluminio/espuma | tipo de motor | Motor CC sin escobillas |
| Velocidad | 1,5-3S ajustable | Tamaño del producto | 340*280*1045mm |
| Funciones de seguridad y control | Placa base de control integrado dedicada a barreras de estacionamiento | tipo de brazo | Recto/Plegable/Valla/Espuma LED/Brazos telescópicos |
| Resaltar | Extreme weather resistance Boom Barrier Gate,1.5-3S adjustable speed Automatic Barrier Gate,DC Brushless Motor Parking Barrier Gate |
||
Descripción de producto
HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed Boom Barrier
HCW robust parking barrier gate features 1.5-3 second adjustable speed and exceptional tolerance in extreme weather conditions, providing reliable traffic control in high-humidity environments.
Product Overview
The S300 barrier gate is a durable traffic control solution designed for efficient operation. Operating on AC 220V±10% (50Hz), it withstands temperatures from -25℃ to 70℃ and humidity levels of 5%-95%, ensuring reliable performance in harsh conditions. Its bidirectional design allows flexible installation.
Technical Specifications
| Brand Name | HCW |
| Product Model | S300 |
| Chassis Material | Cold Rolled Steel Plate |
| Boom Length | 1-6 meters |
| Arm Material | Aluminum/Foam |
| Motor Type | Brushless DC Motor |
| Speed | 1.5-3S Adjustable |
| Product Dimensions | 340×280×1045mm |
| Warranty | 1 Year |
| Humidity Range | 5% - 95% |
| Safety & Control Features | Anti-collision Rebound/Loop Detection/Infrared |
| Arm Types | Straight/Folding/Fence/LED Foam/Telescopic Arm |
Key Features and Benefits
- Smart Operation: Supports wireless remote control (up/down/stop) and manual button operation, seamlessly integrating into modern access control systems
- Patented Integrated Core Mechanism: Combines frame, reducer and transmission system to reduce vibration and improve operational precision
- Adjustable and Safe Arm System: Tension spring system safely adapts to different arm lengths, providing high security and flexibility
- Durable and Aesthetic Housing: Corona high-temperature powder coating (180°C-250°C) provides corrosion resistance and maintains smooth appearance
- Multi-layer Safety Protection: Customizable safety system including ground loop, pressure sensors and infrared detectors for 360° protection
Motor and Performance
Equipped with brushless DC motor (80W/120W), this telescopic barrier provides fast 3-second or stable 6-second lifting cycles. The compact yet powerful CW203 telescopic barrier is ideal for parking lots, toll stations, and secure areas.
